WE’VE GOT YOU COVERED
SCALABLE + SECURE WORKPLACE WIRELESS COMMUNICATION SOLUTION
POLY ROVE R8
WE GOT YOUR BACK
MONITOR, MANAGE, AND MAINTAIN
POLY ROVE HANDSETS
POLY ROVE 30 | POLY ROVE 40 | |
MICROBAN ANTIMICROBIAL PROTECTION | ||
DUST AND WATER PROTECTION | IP65: dust tight and water resistant | IP65: dust tight and water resistant |
IMPACT PROTECTION | Drop proof (Up to 6.6ft/2m) | Drop proof (Up to 6.6ft/2m) |
USER CONTROLS | 4 dedicated programable line keys, 3 softkeys, dedicated volume keys and push-to-talk (PTT) button | 4 dedicated programable line keys, 3 softkeys, dedicated volume keys, push-to-talk (PTT) button and emergency key |
TALK TIME | Up to 18 hours talk time / Up to 300 hours standby time | Up to 18 hours talk time / Up to 300 hours standby time |
DEDICATED EMERGENCY KEY | ||
VIBRATE MODE | ||
CONNECTIVITY | Dedicated 3.5 mm standard headset port | Bluetooth® headset connectivity and dedicated 3.5 mm standard headset port |

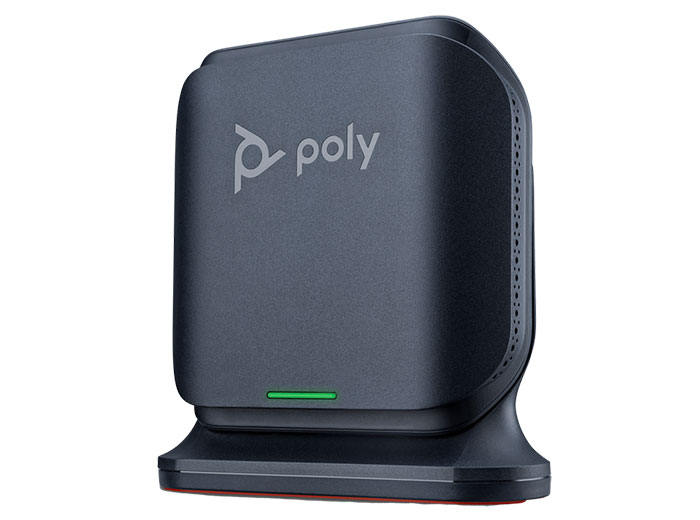

POLY ROVE BASES
POLY ROVE B2 | POLY ROVE B4 | |
CELL SUPPORT | Single cell (1 base) /dual cell (2 bases) | Multi cell (up to 254 bases per system) |
NUMBER OF HANDSETS SUPPORTED | Up to 20 | Up to 30 (up to 1,000 per system) |
NUMBER OF CONCURRENT CALLS | Up to 10 (single cell) / Up to 20 (dual cell) | Up to 8 (up to 2,000 per system) |
ROAMING | Seamless roaming between bases | Seamless roaming between bases |
DECT™ SECURITY | DECT™ redundancy feature and secure DECT™ encryption | DECT™ redundancy feature are secure DECT™ encryption |
MOUNTING OPTIONS | Stand or wall mountable | Stand or wall mountable |
WORKS WITH | Compatible with Poly Rove R8 DECT™ repeater and Poly Rove 30 and Poly 40 handsets | Compatible with Poly Rove R8 DECT™ repeater and Poly Rove 30 and Poly 40 handsets |

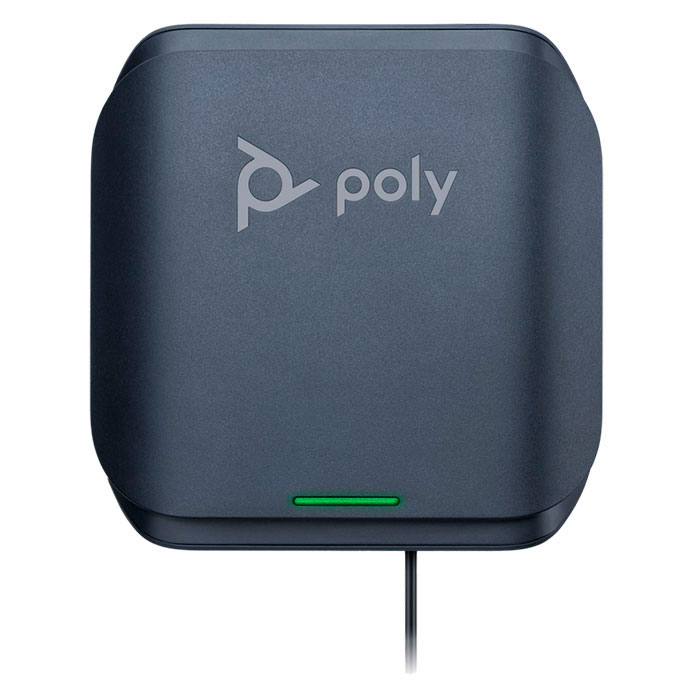

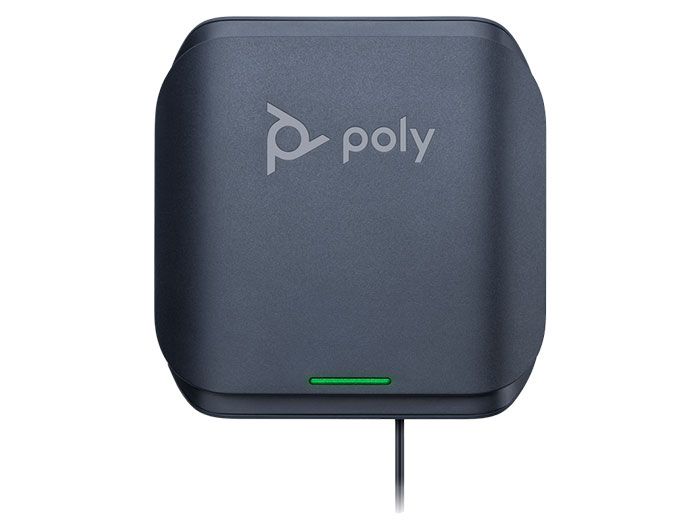

POLY ROVE R8 DECT™ REPEATER
SPECIFICATIONS

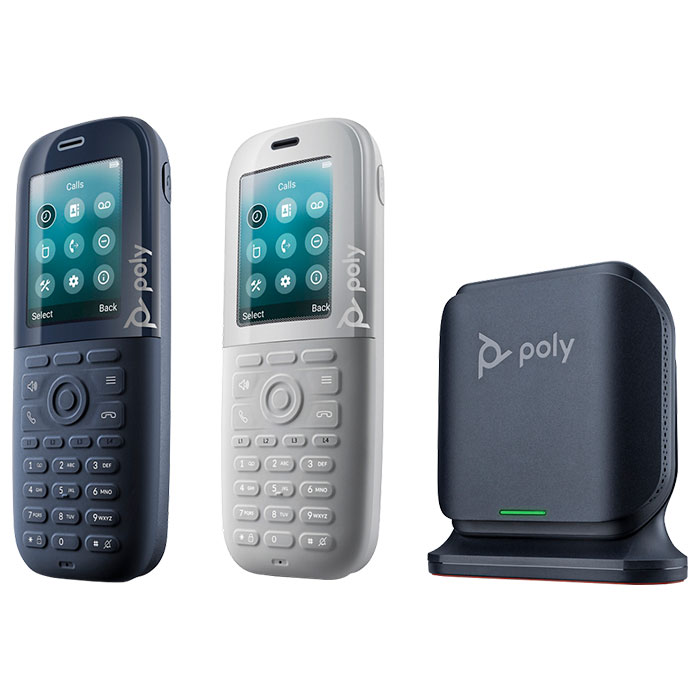

Poly Rove DECT™ Phone Solution Components
Poly Rove 30 DECT™ Handset
Poly Rove 40 DECT™ Handset
Poly Rove B2 DECT™ Base Station

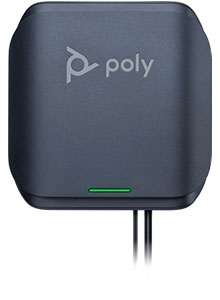

Poly Rove B4 DECT™ Base Station
Poly Rove R8 DECT™ Repeater

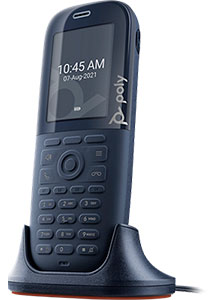

Poly Rove 30 DECT™ Handset
DECT™ Frequency
- 1920–1930 MHz (North America SKU)
- 1880–1900 MHz (EU/ANZ/UK SKU)
Handset Display
- 2.4” TFT color LCD with backlight display (240 x 320 pixels 64K)
- Unicode UTF-8-character support
- Multilingual user interface including US English, UK English, Czech, Danish, Dutch, French, German, Italian, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Serbian, Slovenia, and Turkish
Audio Features
- Full-duplex conversations, acoustic echo cancellation and background noise suppression
- Frequency response—150 Hz–7 kHz for handset, optional headset and hands-free speakerphone modes
Telephony Features
- Multiple Lines Support for Handsets (20 lines per HS)
- Up to 2 call appearances
- Shared call/bridged line appearance
- Distinctive incoming call treatment/ call waiting
- Call timer and call waiting
- Call transfer, hold, pickup, call resume
- Called, calling, connected party information
- Local or network based three-way audio conferencing
- One-touch speed dial, redial
- Missed Call Notifications
- Do Not Disturb (DND) function
- Intercom
- Enhanced Call Park
- Caller ID enable/disable
- Call forward on busy, on no answer, unconditional
- Message Waiting Indicator (MWI)
- 10 Alarm Profiles
- Out of voice band DTMF (RFC 2833)
- Call progress tone generation
- Daylight Savings Time support—worldwide
- Dedicated push to talk (PTT), mute and volume control buttons
- 3 soft keys and 4 programmable line keys
- Out of voice band DTMF (SIP INFO METHOD)
- Call progress tone generation
- Tone Profile per SIP SP and OBITALK service
- Daylight Savings Time support—worldwide
- Dedicated push to talk (PTT) and volume control buttons
- 3 programmable soft keys and 4 dedicated line keys
- 20 distinctive ringtones
- OTA (Over the Air) upgrade
- Advanced noise cancellation
Headset and Handset Compatibility
- Dedicated 3.5 mm standard headset port
- Compliant with ADA Section 508 Subpart B1194.23 (all)
- Hearing aid compatible handset for magnetic coupling to hearing aids
Handset Power
- External Universal AC adapter (5V 2A DC)
- One (1) 1100mAh Li-ion battery (rechargeable and replaceable)
- Up to 18 hours talk time
- Up to 300 hours standby time
Includes
- Handset
- Charging Cradle
- 1100mAh Li-ion Battery
- Belt Clip
- Quick Start Card
- Safety Sheet
- Power Adapter
Compliance
- USA FCC
- Canada IC RSS
- EEA CE
- AU/NZ RCM
- NZ Telepermit
- Hong Kong HKCA
- Singapore IMDA TS CT-CTS
- ROHS compliant
- ENERGY STAR
Safety
- UL 60950-1
- CE Mark
- CAN/CSA C22.2 No 62368-1
- EN 60950-1 and 62368-1
- IEC 60950-1 and 62368-1
- AS/NZS 60950.1 and 62368.1
Operating Conditions
- Temperature: -10 to +55°C (+14 to +131°F)
- Relative humidity: 5% to 95%, non-condensing
- Storage Temperature: -40 to +70°C (-40 to +158° F)
Weight
- Handset: 0.168 kg
- Handset charging cradle: 0.065 kg
Unit Box Dimensions (W X H X D)/Weight
- Handset box dimensions: 176 x 163 x 44 (mm)
- Handset box weight: 0.365 kg (with product, accessory, and documents)
Country of Origin
- China
Warranty
- 1-year limited warranty

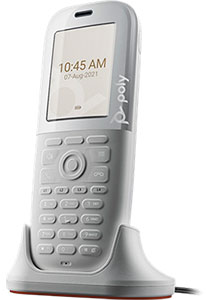

Poly Rove 40 DECT™ Handset
DECT™ Frequency
- 1920–1930 MHz (North America SKU)
- 1880–1900 MHz (EU/ANZ/UK SKU)
Handset Display
- 2.4” TFT color LCD with backlight display (240 x 320 pixels 64K)
- Unicode UTF-8-character support
- Multilingual user interface including US English, UK English, Czech, Danish, Dutch, French, German, Italian, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Serbian, Slovenia, and Turkish
Audio Features
- Full-duplex conversations, acoustic echo cancellation and background noise suppression
- Frequency response—150 Hz–7 kHz for handset, optional headset and hands-free speakerphone modes
Telephony Features
- Multiple Lines Support for Handsets (20 lines per HS)
- Up to 2 call appearances
- Shared call/bridged line appearance
- Distinctive incoming call treatment/ call waiting
- Call timer and call waiting
- Call transfer, hold, pickup, call resume
- Called, calling, connected party information
- Local or network based three-way audio conferencing
- One-touch speed dial, redial
- Missed Call Notifications
- Do Not Disturb (DND) function
- Intercom
- Enhanced Call Park
- Caller ID enable/disable
- Call forward on busy, on no answer, unconditional
- Message Waiting Indicator (MWI)
- Vibrate Mode
- Alarm/Emergency Button
- 10 Alarm Profiles
- Built-in Bluetooth for Bluetooth Headset
- Out of voice band DTMF (RFC 2833)
- Out of voice band DTMF (RFC 2833)
- Out of voice band DTMF (SIP INFO METHOD)
- Call progress tone generation
- Daylight Savings Time support—worldwide
- Daylight Savings Time support—worldwide
- Dedicated push to talk (PTT), mute and volume control buttons
- 3 soft keys and 4 programmable line keys
- 20 distinctive ringtones
- OTA (Over the Air) upgrade
- Advanced noise cancellation
Headset and Handset Compatibility
- Dedicated 3.5 mm standard headset port
- Bluetooth® headset compatibility
- Compliant with ADA Section 508 Subpart B1194.23 (all)
- Hearing aid compatible handset for magnetic coupling to hearing aids
Handset Power
- External Universal AC adapter (5V 1A DC)
- One (1) 1100mAh Li-ion battery (rechargeable and replaceable)
- Up to 18 hours talk time
- Up to 300 hours standby time
Includes
- Handset
- Charging Cradle
- 1100mAh Li-ion Battery
- Belt Clip
- Quick Start Card
- Safety Sheet
- Power Adapter
Compliance
- USA FCC
- Canada IC RSS
- EEA CE
- AU/NZ RCM
- NZ Telepermit
- Hong Kong HKCA
- Singapore IMDA TS CT-CTS
- ROHS compliant
- ENERGY STAR
Safety
- UL 62368-1
- CE Mark
- CAN/CSA C22.2 No 62368-1
- EN 60950-1 and 62368-1
- IEC 60950-1 and 62368-1
- AS/NZS 60950.1 and 62368.1
Operating Conditions
- Temperature: -10 to +55°C (+14 to +131°F)
- Relative humidity: 5% to 95%, non-condensing
- Storage Temperature: -40 to +70°C (-40 to +158° F)
Weight
- Handset: 0.171 kg
- Handset charging cradle: 0.066 kg
Unit Box Dimensions (W X H X D)/Weight
- Handset box dimensions: 176 x 163 x 44 (mm)
- Handset box weight: 0.379 kg (with product, accessory, and documents)
Country of Origin
- China
Warranty
- 1-year limited warranty
Poly Rove B2 DECT™ Base Station
DECT™ Frequency
- 1920–1930 MHz (North America SKU)
- 1880–1900 MHz (EU/ANZ/UK SKU)
Range
- Indoor: up to 165 ft (50 m)
- Outdoor: up to 980 ft (300 m)
- Range increases by up to 50 m or up to 300 m depending on environment as a base station or repeater is added
Audio Features
- Narrowband Codecs: G.711 A-law and μ-law, G.726, G.729A, G.729AB
- Wideband Codec: G.722, Opus
- Voice activity detection
- Comfort noise generation
- DTMF tone generation (RFC2833 and SIP INFO)
- Low-delay audio packet transmission
- Adaptive jitter buffers
- Advance Noise Cancelation
- Packet loss concealment
- Packet loss concealment
- G.165, 168 echo cancellation
- Silence suppression
Telephony Features
- Up to 20 Handsets (Single/Dual Cell)
- Up to 10 Simultaneous Calls (Single Cell)
- Up to 20 Simultaneous Calls (Dual Cell)
- Up to 20 SIP Registrations
- Shared call/bridged line appearance
- Shared call/bridged line appearance
- Distinctive incoming call treatment/ call waiting
- Call timer and call waiting
- Call transfer, hold, pickup, call resume
- Called, calling, connected party information
- Local or network based three-way audio conferencing
- Missed Call Notifications
- Do Not Disturb (DND) function
- Intercom
- Enhanced Call Park
- Caller ID enable/disable
- Call forward on busy, on no answer, unconditional
- Message Waiting Indicator (MWI)
- LED Indicator
- Locate Handset and Handset Registration Button
- Monitor signal strength of handsets
- Monitor battery life of handsets
- Out of voice band DTMF (RFC 2833)
- Out of voice band DTMF (SIP INFO METHOD)
- Call progress tone generation
- Daylight Savings Time support—
- XSi directory
- XML/LDAP/remote phonebook
- DECT™ redundancy
VOIP Features
- Ten (10) service provider configuration profile assignments (ITSP Profile A – J)
- Up to Twenty (20) service subscription profile assignments (SP 1 – 20)
- SIPv2 (RFC 3261, 3262, 3263,3264)
- SIP over UDP
- SIP over TCP
- SIP over TLS
- SIP proxy redundancy—Local or DNS based SVR, primary and secondary fallback list
- Maximum number of sessions—independent per service
- Codec profile per SIP SP
- Dynamic audio payload
- Codec profile per SIP SP
- Dynamic audio payload
- SUBSCRIBE/NOTIFY Framework (RFC 3265)
- NOTIFY dialog, line status
- SUBSCRIBE message summary
- VoIP NAT interworking
- DATA Header support
- Remote-Party-ID (RPID)
- P-Asserted-Identity (PAID)
- RTP Statistics in BYE message and SIP PUBLISH with MOS score
Network
- 10/100 Base Ethernet Port
- Conforms to IEEE802.3-2005 (Clause 40) for physical media attachment
- Conforms to IEEE802.3-2002 (Clause28) for link partner auto-negotiation
- SIP protocol support
- SDP
- Manual or dynamic host configuration protocol DHCP network setup
- Time and date synchronization using SNTP FTP/TFTP/HTTP/HTTPS server-based central provisioning for mass deployments
- SNTP (RFC 2030)
- Provisioning and call server redundancy supported
- QoS support—IEEE 802.1p/Q tagging
- (VLAN), Layer 3 TOS, and DHCP
- CDP/LLDP-MED for VLAN discovery
- Network address translation—support for static configuration and “Keep-Alive” SIP signaling
- RTCP and RTP support
- Event logging
- Syslog
- MAC Address (IEEE 802.3)
- UDP (RFC 768) in SSL/TLS
- TCP (RFC 793) in SSL/TLS
- IPv4 (RFC 791) – static IP and DHCP support
- ICMP (RFC 792)
- ARP—address resolution protocol
- Domain Name System (DNS) A records (RFC 1706) and SRV records (RFC 2782)
- DNS NAPTR
- RTP/RTCP (RFC 1889)
- DHCP Client (RFC 2131)
- DiffServ (RFC 2475)—independently configured service, SIP and media
- ToS (RFC 791, 1349)—independently configured service, SIP and media
- VLAN tagging (802.1p)—independently configured service, SIP and media
Management and Configuration
- Provisioning via PDMS-SP
- Troubleshoot interface: Syslog, PCAP and Web
- Secure Remote Provisioning: HTTPS, Encrypted XML via TFTP or HTTP
- Customization: Poly Zero Touch
- System settings back-up/restore: Save and restore configuration via XML file to/from a local folder
Security
- 802.1X authentication and EAPOL
- Media encryption via SRTP
- Transport layer security
- Encrypted configuration files
- Digest authentication
- Username and Password web interface access via HTTP or HTTPS
- HTTPS secure provisioning
RTP Statistics
- Audio Codec Type (Tx/Rx)
- RTP Packetization (Tx/Rx)
- RTP Packet Count (Tx/Rx)
- RTP Byte Count (Tx/Rx)
- Packets Out-Of-Order
- Packets Interpolated
- Packets Dropped
- Packets Lost
- Jitter Buffer Length-ms
- Received Interarrival Jitter-ms
- Jitter Buffer Underruns
- Jitter Buffer Overruns
- MOS Score
Base Station Power
- External Universal AC adapter (5V 2A DC)
- Power Over Ethernet (POE)
Includes
- Base Station
- Stand
- Ethernet Cable
- Power Adapter
- Wall Mounting Kit
- Quick Start Guide
- Safety Sheet
Compliance
- USA FCC
- Canada IC RSS
- EEA CE
- AU/NZ RCM
- NZ Telepermit
- Hong Kong HKCA
- Singapore IMDA TS CT-CTS
- ROHS compliant
- ENERGY STAR
Safety
- UL 62368-1
- CE Mark
- CAN/CSA C22.2 No 62368-1
- EN 60950-1 and 62368-1
- IEC 60950-1 and 62368-1
- AS/NZS 60950.1 and 62368.1
Operating Conditions
- Temperature: -10 to +55°C (+14 to +131°F)
- Relative humidity: 5% to 95%, non-condensing
- Storage Temperature: -40 to +70°C (-40 to +158° F)
Weight
- Base station weight: 0.176 kg
Unit Box Dimensions (W X H X D)/Weight
- Base Station box dimensions: 239 x 141 x 44 (mm)
- Base Station box weight: 0.395 kg (with product, accessory, and documents)
Country of Origin
- China
Warranty
- 1-year limited warranty
Poly Rove B4 DECT™ Base Station
DECT™ Frequency
- 1920–1930 MHz (North America SKU)
- 1880–1900 MHz (EU/ANZ/UK SKU)
Range
- Indoor: up to 165 ft (50 m)
- Outdoor: up to 980 ft (300 m)
- Range increases by up to 50 m or up to 300 m depending on environment as a base station or repeater is added
Audio Features
- Narrowband Codecs: G.711 A-law and μ-law, G.726, G.729A, G.729AB
- Wideband Codec: G.722, Opus
- Voice activity detection
- Comfort noise generation
- Voice activity detection
- Comfort noise generation
- DTMF tone generation (RFC2833 and SIP INFO)
- Low-delay audio packet transmission
- Adaptive jitter buffers
- Advance Noise Cancelation
- Packet loss concealment
- G.165, 168 echo cancellation
- Silence suppression
Telephony Features
- Up to 30 Handsets per Base Station
- Up to 8 Simultaneous Calls per Base Station
- Up to 1000 Handsets per System
- Up to 1000 SIP Registrations per System
- Up to 2000 Simultaneous Calls per System
- Shared call/bridged line appearance
- Distinctive incoming call treatment/ call waiting
- Call timer and call waiting
- Call transfer, hold, divert (forward), pickup, call resume
- Called, calling, connected party information
- Local or network based three-way audio conferencing
- Missed Call Notifications
- Do Not Disturb (DND) function
- Intercom
- Enhanced Call Park
- Caller ID enable/disable, caller ID number, caller ID name
- Call forward on busy, on no answer, unconditional
- Message Waiting Indicator (MWI)
- LED Indicator
- Locate Handset and Handset Registration Button
- Monitor signal strength of handsets
- Monitor battery life of handsets
- Out of voice band DTMF (RFC 2833)
- Out of voice band DTMF (SIP INFO METHOD)
- Call progress tone generation
- Daylight Savings Time support—
- XSi directory
- XML/LDAP/remote phonebook
- DECT™ redundancy
VOIP Features
- Ten (10) service provider configuration profile assignments (ITSP Profile A – J)
- Up to 1000 (1000) service subscription profile assignments (SP 1 – 1000)
- SIPv2 (RFC 3261, 3262, 3263,3264)
- SIP over UDP
- SIP over TCP
- SIP over TLS
- SIP proxy redundancy—Local or DNS based SVR, primary and secondary fallback list
- Maximum number of sessions—independent per service
- Codec profile per SIP SP
- Dynamic audio payload
- SUBSCRIBE/NOTIFY Framework (RFC 3265)
- NOTIFY dialog, line status
- SUBSCRIBE message summary
- VoIP NAT interworking
- DATA Header support
- Remote-Party-ID (RPID)
- P-Asserted-Identity (PAID)
Network
- 10/100 Base Ethernet Port
- Conforms to IEEE802.3-2005 (Clause 40) for physical media attachment
- Conforms to IEEE802.3-2002 (Clause28) for link partner auto-negotiation
- SIP protocol support
- SDP
- Manual or dynamic host configuration protocol DHCP network setup
- Time and date synchronization using SNTP FTP/TFTP/HTTP/HTTPS server-based central provisioning for mass deployments
- SNTP (RFC 2030)
- Provisioning and call server redundancy supported
- QoS support—IEEE 802.1p/Q tagging
- (VLAN), Layer 3 TOS, and DHCP
- CDP/LLDP-MED for VLAN discovery
- Network address translation—support for static configuration and “Keep-Alive” SIP signaling
- RTCP and RTP support
- Event logging
- Syslog
- MAC Address (IEEE 802.3)
- UDP (RFC 768) in SSL/TLS
- TCP (RFC 793) in SSL/TLS
- IPv4 (RFC 791) – static IP and DHCP support
- ICMP (RFC 792)
- ARP—address resolution protocol
- Domain Name System (DNS) A records (RFC 1706) and SRV records (RFC 2782)
- DNS NAPTR
- RTP/RTCP (RFC 1889)
- DHCP Client (RFC 2131)
- DiffServ (RFC 2475)—independently configured service, SIP and media
- ToS (RFC 791, 1349)—independently configured service, SIP and media
- VLAN tagging (802.1p)—independently configured service, SIP and media
Management and Configuration
- Provisioning via PDMS-SP
- Troubleshoot interface: Syslog, PCAP and Web
- Secure Remote Provisioning: HTTPS, Encrypted XML via TFTP or HTTP
- Customization: Poly Zero Touch
- System settings back-up/restore: Save and restore configuration via XML file to/from a local folder
Security
- 802.1X authentication and EAPOL
- Media encryption via SRTP
- Transport layer security
- Encrypted configuration files
- Digest authentication
- Username and Password web interface access via HTTP or HTTPS
- HTTPS secure provisioning
RTP Statistics
- Audio Codec Type (Tx/Rx)
- RTP Packetization (Tx/Rx)
- RTP Packet Count (Tx/Rx)
- RTP Byte Count (Tx/Rx)
- Packets Out-Of-Order
- Packets Interpolated
- Packets Dropped
- Packets Lost
- Jitter Buffer Length-ms
- Received Interarrival Jitter-ms
- Jitter Buffer Underruns
- Jitter Buffer Overruns
- MOS Score
Base Station Power
- External Universal AC adapter (5V 2A DC)
- Power Over Ethernet (POE)
Includes
- Base Station
- Stand
- Ethernet Cable
- Wall Mounting Kit
- Quick Start Guide
- Safety Sheet
Compliance
- USA FCC
- Canada IC RSS
- EEA CE
- AU/NZ RCM
- NZ Telepermit
- Hong Kong HKCA
- Singapore IMDA TS CT-CTS
- ROHS compliant
- ENERGY STAR
Safety
- UL 60950-1
- CE Mark
- CAN/CSA C22.2 No 62368-1
- EN 60950-1 and 62368-1
- IEC 60950-1 and 62368-1
- AS/NZS 60950.1 and 62368.1
Operating Conditions
- Temperature: -10 to +55°C (+14 to +131°F)
- Relative humidity: 5% to 95%, non-condensing
- Storage Temperature: -40 to +70°C (-40 to +158° F)
Weight
- Base station weight: 0.179 kg
Unit Box Dimensions (W X H X D)/Weight
- Base Station box dimensions: 184 x 139 x 44 (mm)
- Base Station box weight: 0.313 kg (with product, accessory, and documents)
Country of Origin
- China
Warranty
- 1-year limited warranty
Poly Rove R8 DECT™ Repeater
DECT™ Frequency
- 1920–1930 MHz (North America SKU)
- 1880–1900 MHz (EU/ANZ/UK SKU)
Range
- Indoor: up to 165 ft (50 m)
- Outdoor: up to 980 ft (300 m)
- Range increases by up to 50 m or up to 300 m depending on environment as a base station or repeater is added
General Features
- Extends DECT™ coverage
- Supports automatic handover of calls
- Up to 2 simultaneous calls per repeater
- Up to 6 repeaters per base station
- Up to 3 repeaters in cascade mode
- Automatic Handover of Calls between Cells
- Air synchronization
- Encrypted Daisy Chained
- Auto Configuration on Single and Dual Cell
- Zero Touch Installation
- 12 Slot Support
- DECT™ Security Step B
- LED Indicator
Physical Features
- External Universal AC adapter (5V 2A DC)
- Wall Mountable
Includes
- Repeater
- Stand
- Power Adapter
- Wall Mounting Kit
- Quick Start Guide
- Safety Sheet
Compliance
- USA FCC
- Canada IC RSS
- EEA CE
- AU/NZ RCM
- NZ Telepermit
- Hong Kong HKCA
- Singapore IMDA TS CT-CTS
- ROHS compliant
- ENERGY STAR
Safety
- UL 60950-1
- CE Mark
- CAN/CSA C22.2 No 62368-1
- EN 60950-1 and 62368-1
- IEC 60950-1 and 62368-1
- AS/NZS 60950.1 and 62368.1
Operating Conditions
- Temperature: -10 to +55°C (+14 to +131°F)
- Relative humidity: 5% to 95%, non-condensing
- Storage Temperature: -40 to +70°C (-40 to +158° F)
Weight
- Repeater weight: 0.166 kg
Unit Box Dimensions (W X H X D)/Weight
- Repeater box dimensions: 239 x 141 x 44 (mm)
- Repeater box weight: 0.354 kg (with product, accessory, and documents)
Country of Origin
- China
Warranty
- 1-year limited warranty
